X-Rings

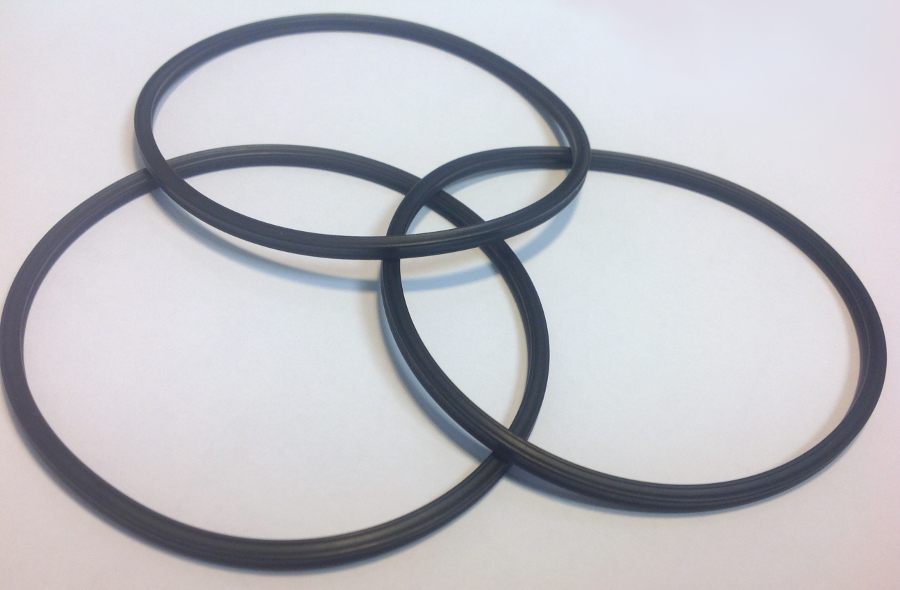

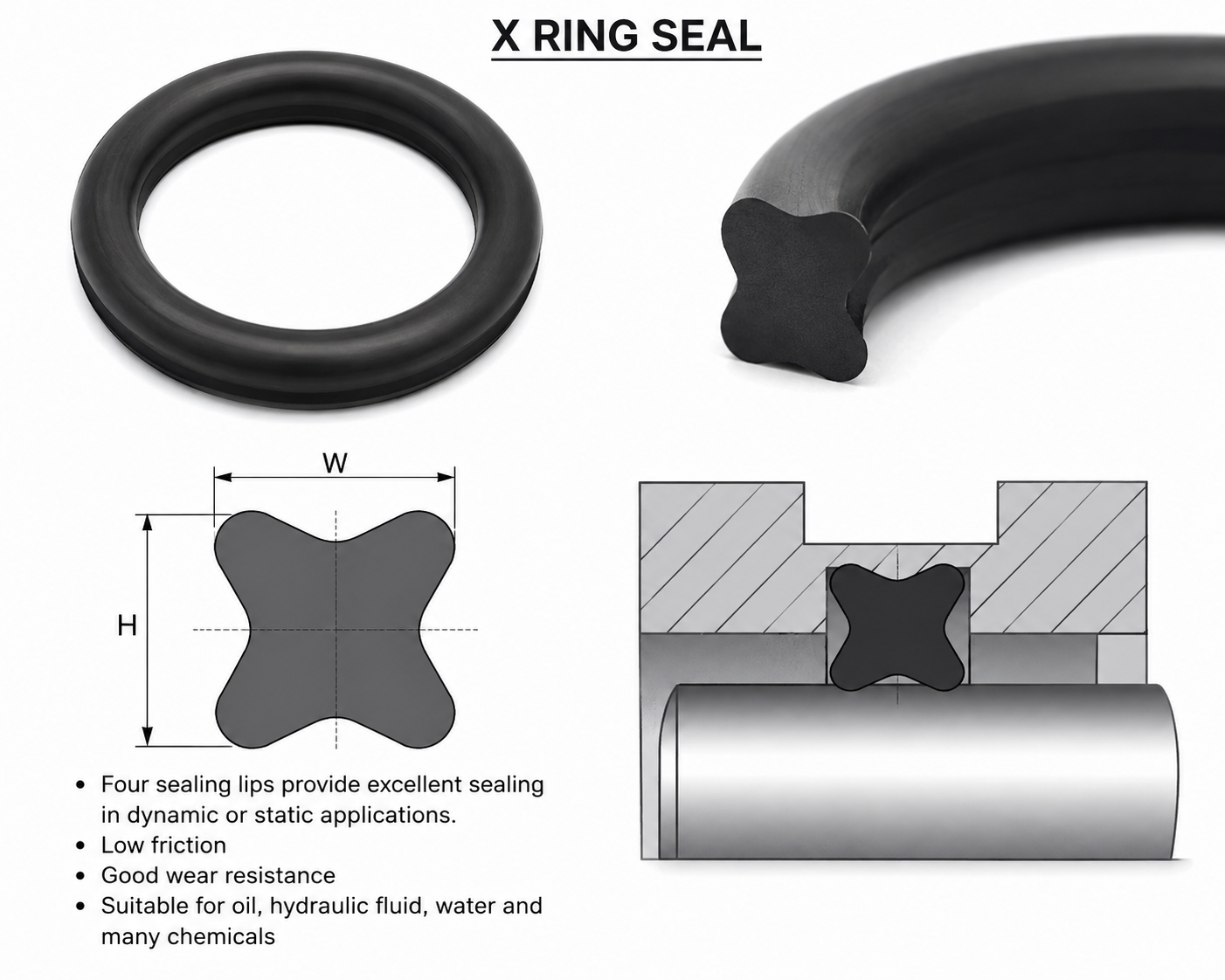

X-Rings, also known as X-Seals or Quad Rings, are precision-engineered sealing components designed to fit standard O-Ring grooves while providing enhanced sealing performance in demanding applications. Their distinctive X-shaped cross section creates four sealing lips, helping to provide reliable sealing and improved resistance to twisting and rolling compared with conventional O-Rings.

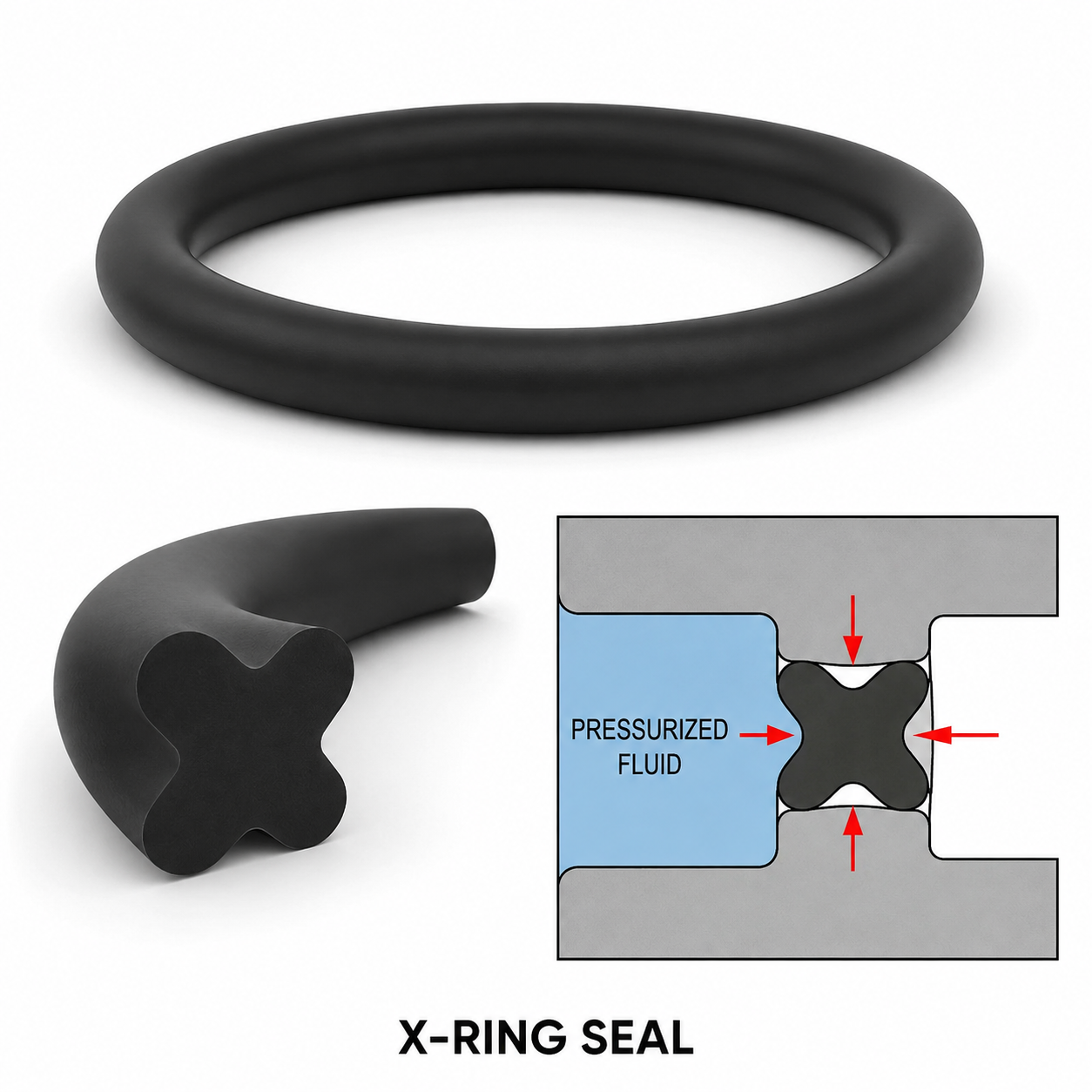

X-Rings are particularly well suited to reciprocating and dynamic sealing applications, where shaft or piston movement can cause a conventional O-Ring to twist, roll, or move within its groove. The X-shaped profile helps maintain seal stability during movement, reducing the risk of seal failure and supporting consistent sealing performance.
Available in a range of elastomer materials, our X-Rings can be selected to suit different operating environments, temperatures, fluids, and application requirements.
X-Ring Materials Available
- NBR (Nitrile): Excellent resistance to mineral oils, fuels, and many hydraulic fluids, making it suitable for a wide range of general industrial applications.
- Fluoroelastomer (Viton®): Offers excellent resistance to high temperatures, oils, fuels, and aggressive chemicals. Ideal for demanding industrial and automotive applications.
- EPDM: Provides excellent resistance to water, steam, weathering, ozone, and many chemicals, making it suitable for water and outdoor applications.
- Silicone: Offers excellent flexibility and temperature resistance, with applications across industrial, food, medical, and other specialist industries.
X-Ring Applications
X-Rings are commonly used in applications involving reciprocating, dynamic, and static movement, including hydraulic and pneumatic equipment, cylinders, pumps, valves, machinery, and industrial sealing systems.
If you require a reliable X-Ring seal for a standard O-Ring groove, our range of materials and sizes provides options for a wide variety of operating conditions and sealing requirements.
Key benefits of X-Ring seals:
- Designed to fit standard O-Ring grooves
- X-shaped, four-lobed cross section
- Reduced tendency to twist or roll during reciprocating movement
- Suitable for static and dynamic sealing applications
- Available in NBR, Fluoroelastomer (Viton®), EPDM, and Silicone
- Suitable for a wide range of industrial and engineering applications
Frequently asked questions
1. What is an X-Ring seal?
An X-Ring seal, also known as a Quad Ring or X-Seal, is a rubber sealing ring with a distinctive X-shaped cross section. X-Ring seals provide four sealing lips and are designed for reliable performance in static, reciprocating and dynamic sealing applications.
2. What are X-Ring seals used for?
X-Ring seals are used for static, reciprocating and rotary sealing applications where reliable sealing performance is required. They are particularly suitable for applications involving movement, as the X-shaped profile helps reduce twisting and rolling within the groove.
3. What is the difference between an X-Ring and an O-Ring?
The main difference between an X-Ring and O-Ring is their cross-sectional design. An O-Ring has a circular profile, while an X-Ring has an X-shaped, four-lobed profile. This design provides additional sealing lips and helps improve stability during dynamic and reciprocating movement.
4. What materials are available for X-Ring seals?
X-Ring seals are available in NBR, Fluoroelastomer (Viton®), EPDM and Silicone. Each material offers different properties for temperature resistance, chemical compatibility, oil resistance and environmental conditions. Selecting the correct X-Ring material is important for achieving optimum sealing performance.
5. Can X-Rings be used in standard O-Ring grooves?
Yes, X-Rings can be used in many standard O-Ring groove configurations, making them a practical alternative to conventional O-Rings. They are particularly beneficial in applications where reciprocating movement can cause an O-Ring to twist or roll. Groove dimensions should be checked to ensure the correct X-Ring fit and sealing performance.
