Self Retaining Seas for Pneumatic Applications
Self retaining seals from Parker are advanced sealing solutions designed for pneumatic cylinders and dynamic applications where reliable sealing, wiping and secure positioning are essential. These innovative profiles combine multiple functions into a single component, reducing installation complexity and improving performance.
At Ashton Seals, we supply high-quality self retaining seal and wiper profiles engineered for long service life, low friction operation and consistent sealing performance across a wide range of industrial applications.
What are self retaining sealing
Self retaining seals are specially designed pneumatic rod seal and wiper systems that integrate three core functions:
Sealing
Wiping (contamination exclusion)
Fixing (retention within the housing)
This multifunctional design eliminates the need for additional components such as circlips or retainers, simplifying assembly and reducing potential failure points.
Key features and benefits
Self retaining seals offer several performance advantages:
Three-in-one functionality – seal, wiper and retainer combined
Reduced installation time – easy fitting into open housings
Improved reliability – fewer components means fewer failure risks
Low friction performance – optimised lip geometry supports smooth operation
Long service life – wear-resistant materials and balanced design
Corrosion-free retention – no metal circlips required
These features make them particularly suitable for demanding pneumatic and automation systems.
l

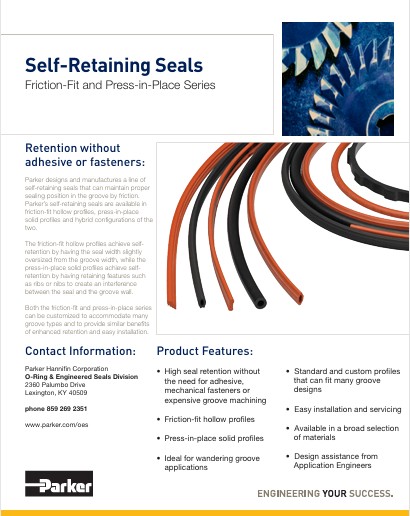

Read & download the full brochure Parker_TechSeal_Self_Retaining_Seals_TSD_5449.pdf
Applications
Self retaining seals are widely used in:
-
Pneumatic cylinders
-
Automation systems
-
Industrial machinery
-
Material handling equipment
-
Packaging machinery
-
OEM equipment design
They are suitable for use in both oiled and oil-free compressed air systems, depending on material selection and operating conditions.
Performance capabilities
Typical operating ranges include:
-
Pressure: Up to 16 bar
-
Temperature: Approximately -20°C to +80°C (material dependent)
-
Speed: Up to 1 m/s surface speed
-
Media: Compressed air (lubricated or dry)
For more demanding environments, alternative materials and profiles can be specified.
Materials and design options
Self retaining seals are manufactured using advanced elastomer and engineered plastic materials to ensure:
-
High wear resistance
-
Excellent media compatibility
-
Stable performance across temperature ranges
-
Consistent sealing under dynamic loads
Different profile variants are available to suit specific applications, including standard round rod seals and specialised designs for extreme operating conditions.
Why choose Ashton Seals?
As a trusted supplier of Parker sealing solutions, Ashton Seals provides:
-
Expert technical support
- Access to genuine Parker products
- Custom specification guidance
- Fast response and reliable supply
We work closely with customers to ensure the correct seal profile, material and configuration is selected for optimal performance.
Request a Quote
Email: ask@ashton-group.co.uk
FAQ's
1. What are self retaining seals?
Self retaining seals are designed to stay securely in place within a groove without adhesives or fasteners, using a friction or interference fit.
This makes installation easier and ensures consistent sealing performance in dynamic applications.
2. What applications are self retaining seals used for?
They are commonly used in aerospace, military, and high-performance engineering applications, where reliability and durability are critical.
They are especially suited to:
Dynamic sealing environments
Complex groove designs
High-performance or safety-critical systems
3. What materials are available for self retaining seals?
Self retaining seals can be manufactured from advanced elastomers and engineered plastics, offering:
High wear resistance
Chemical/media compatibility
Stable performance across temperature ranges
Material selection depends on your specific application requirements.
4. Can self retaining seals be customised?
Yes self retaining seals can be custom-designed to suit your exact application, including:
Different profiles (solid, hollow, hybrid)
Custom groove compatibility
Specific performance requirements
Customisation ensures optimal sealing and long-term reliability
5. Do you provide technical support for seal selection?
Yes you’ll get expert technical support to help you choose the right seal profile, material, and configuration for your application.
