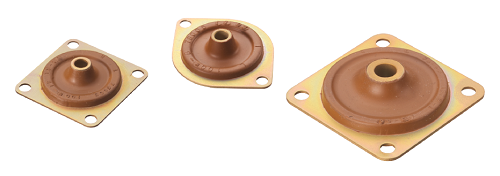

Plate Form Mounts
100 Series, 150 Series
For Isolation of steady vibration and control of occasional shock.
Click below for the full catalogue. Pages 83 to 104
Product-Catalog---Aerospace--Defense-Isolator-Catalog_PC6116.pdf
Standard stock Plate Form Mounts are widely used to efficiently isolate steady-state vibration and control occasional shockThese versatile mounts are available in load ratings of 0.25 to 12 pounds per mount. When loaded to their rated capacity, a system natural frequency of approximately 18 Hz results, providing effective isolation in applications where disturbing frequencies are 40 Hz and above. Radial stiffness is approximately two to three times the axial stiffness.
- Easy to install
- For isolation of steady vibration and control of occassional shock
- Load ratings of 0.25 to 12 pounds per mount
