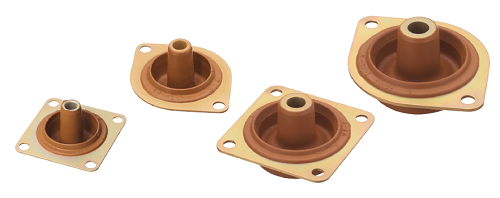

MultiPlane Mounts
106 Series, 156 Series
Economical protection from lower frequency vibration
Click below for the full product catalogue. Pages 90 to 95
Product-Catalog---Aerospace--Defense-Isolator-Catalog_PC6116.pdf
Standard stock Multiplane Mounts are recommended for the isolation of vibration. Lightweight and compact, they provide economical protection from lower frequency disturbances regardless of directions of the forces. They are not recommended where severe, frequently recurring shock is encountered.These versatile mounts are available in load ratings of 0.25 to 12 pounds per mount. When loaded to their rated capacity, a system natural frequency of approximately 18 Hz results, providing effective isolation in applications where disturbing frequencies are 40 Hz and above.
- Easy to install
- Economical protection from lower frequency vibration
- Lightweight and compact
- Load ratings from 0.25 to 8 pounds per unit
