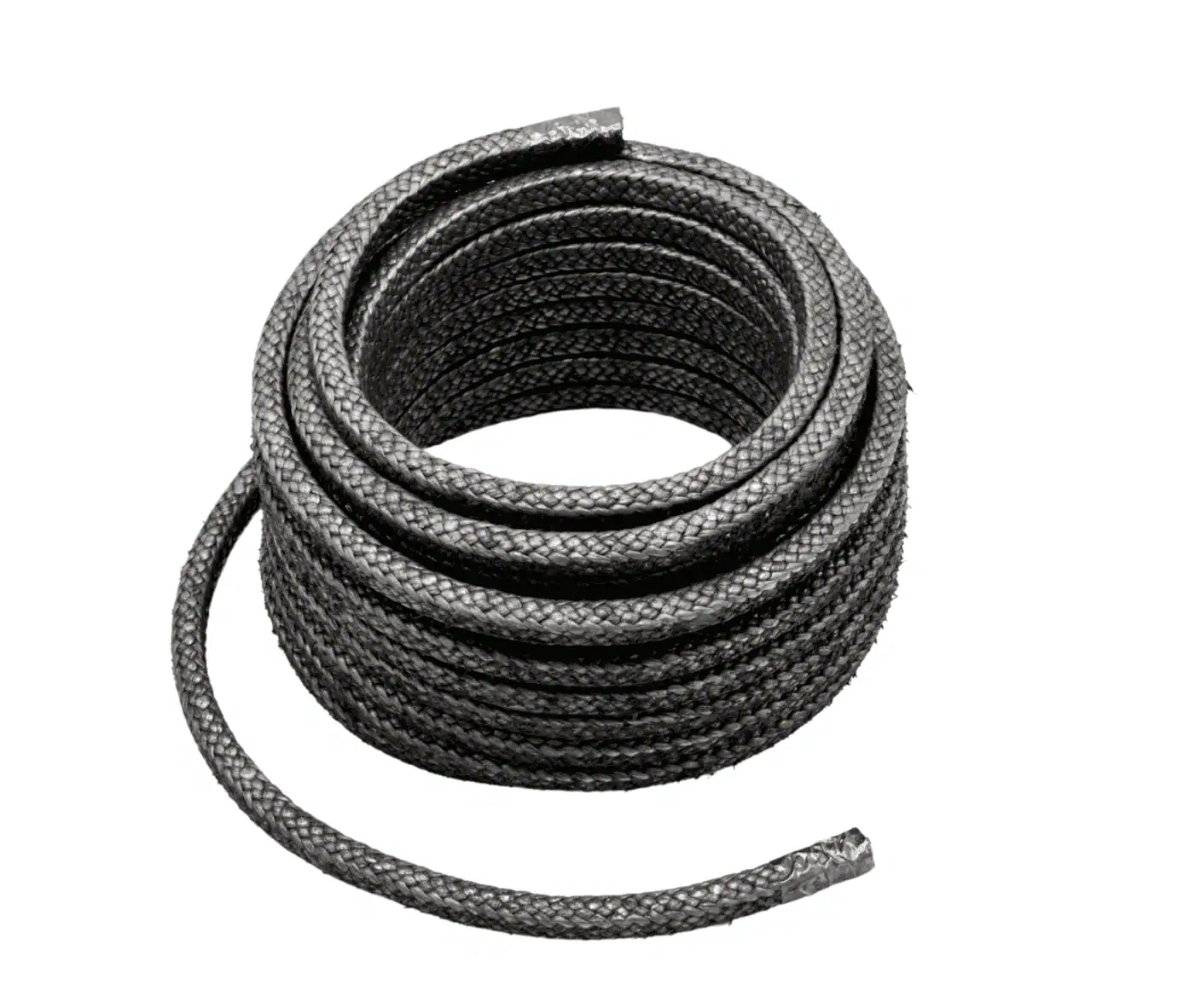

Graphite Packings
Graphite Packings are intended to offer high temperature capability, good chemical resistance and markedly reduced spindle wear. By selecting or combining the many versions of Graphite Packings available – we are able to offer a versatile range of Graphite Packings with varied handling and performance characteristics. These include high conformability, resistance to extrusion, chemical purity, temperature and oxidation resistance amongst others.
Overview of types Graphite Packings
K3222: High-performance pure graphite valve and pump packing suitable for plant wide applications with excellent chemical and temperature resistance. Manufactured from expanded graphite for outstanding sealing ability.
Suitable for high pressure, high temperature applications.
Offering excellent sealing and operational reliability for both Original Equipment Manufacturers and plant users alike
Fire-Safe
K3222W: High performance graphite packing with Inconel wire reinforcement for use at high pressures
Suitable for high pressure, high temperature applications.
Offering excellent sealing and operational reliability for both Original Equipment Manufacturers and plant users alike
Fire-Safe
K40: An exceptional packing combining carbon and Inconel® for high-temperature and high-pressure valve applications. K40 also has a graphite lubricant to reduce stem wear and increase material density.
Ideal for sealing valve glands in high pressure and temperature
Excellent chemical resistance
Often used as anti-extrusion rings with K35 rings
K44: A high purity, graphite based packing for both valve and pump applications, with additional graphite lubricant to further improve sealing performance and dynamic performance.
High performance
Excellent chemical resistance
Often used as anti-extrusion rings with K35 rings
K46: A carbon based packing with graphite and lubricant for both valve and pumps applications
High performance multi-service packing for both valve and pump applications.
Excellent chemical resistance
Often used as anti-extrusion rings with K35 rings
K35 - Rings: sealing solution for high performance valve applications which require excellent pressure and temperature characteristics.
The material has excellent thermal conductivity and thermal resistance.
Can be used with braided header and footer rings for high pressure applications
K35 die-formed rings are unaffected by fluctuations during application, such as thermal cycling.
Hybrid Packings
HYBRID packings are suitable for those applications where an unusual combination of service demands are faced so a specially constructed HYBRID packing may be required.
This is achieved by combining two or more yarns by special braiding methods, and adding selected lubricants. These Hybrid packings are primarily designed for use in specialised duties, but can be equally effective in many more standard applications. KLINGER recommends HYBRID packings in difficult applications where high stresses are involved and the packing is required to offer a tight seal under high pressure, eg reciprocating pumps.
Overview of types Hybrid Packings
K4311: A hybrid packing that combines the properties of Aramid-fibre and PTFE-yarns around a silicone rubber core with PTFE and silicone lubricant. A strong packing suitable for use where shaft wear is a consideration
An excellent dynamic packing for rotary and reciprocating duties
Suitable for abrasive and viscous media
K4313: TopLine hybrid packing that combines the properties of Aramid-fibre and PTFE-yarn around a silicone core to produce a high-strength packing suitable for use with abrasive and viscous media, PTFE yarn ensures shaft wear is kept to a minimum
An excellent dynamic packing for rotary and reciprocating duties
Suitable for abrasive and viscous media

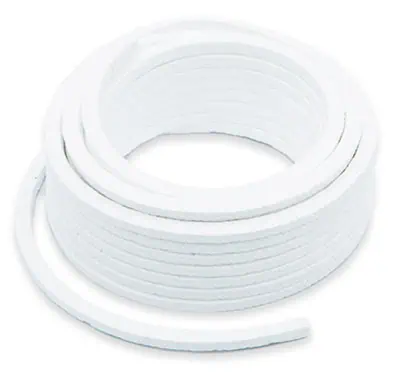

PTFE Packings
Packings made from PTFE (polytetrafluoroethylene) are a mainstay of the mechanical compression packing industry. PTFE is well known for its outstanding resistance to chemical attack, low coefficient of friction and wide temperature tolerance including cryogenic service. This wide flexibility makes PTFE packings a popular choice for those difficult applications where strong solvents, corrosive chemicals and oxidising media require to be sealed. KLINGER have harnessed these properties in our range of PTFE based gland packings to give an enormously wide sealing capability in both valve and pumping applications.
Overview of types PTFE Packings
K49: High performance, multi-service packing for valves and pumping applications. Manufactured from Gore GFO® yarn with encapsulated graphite lubricant for rapid heat dispersion for use in high-speed applications.
Outstanding chemical resistance
WRc approved
K54S: A pure PTFE packing with PTFE lubricant packing suitable for plant wide use and
Excellent choice for plant wide use on services to 260oC and 200 bar
High resistance to chemical attack
WRc approved
K54H: A PTFE packing with added PTFE and mineral oil lubricant, making it an excellent choice for plant wide use especially when a clean, non-contaminating packing is required.
High degree of chemical resistance
K54F: A pure PTFE packing, excellent choice for plant wide use especially when a clean, non-contaminating packing is required
Suitable for food and pharmaceutical applications
High degree of chemical resistance
WRc approved
K55: New generation PTFE yarn with encapsulated graphite lubricant.
More economical than K49
Suitable for both valve and pump applications.
KLINGERlock braided offering excellent sealing and reliability in high performance duties
K4322: PTFE-yarn packing with a graphite lubricant for use in valves and high-speed pumps.
Graphite treating facilitate rapid heat dispersion for high speed applications
Excellent chemical resistance.
KLINGERlock braided offering excellent sealing and reliability in high performance duties.
Synthetic Fibre Packings
An increasing variety of SYNTHETIC fibres are employed in the production of mechanical compression packings.
This is in response from industry for improvements in overall sealing capability. The demand by users for less leakage, downtime and wear combined with reasonable payback time remains the primary criteria for the use of SYNTHETIC packing. SYNTHETIC packings are increasingly finding favour because of the effective techniques employed by KLINGER in respect of the materials used, and in braiding and lubrication methods.
Overview of types Synthetic Fibre Packings
K10: A combination of Acrylic yarn and PTFE to produce a durable and economic sealing material
Economic yet versatile synthetic packing,
Suited to general service in valves and pumps
WRc approved
Also available with graphite instead of PTFE lubricant – K11
K11: An economical packing based on Acrylic-fibre yarn and graphite and an additional lubricant
Economic yet versatile synthetic packing
Suited to general service in valves and pumps
K25: High strength, aramid-fibre yarns with a KLINGERlock cross-braiding. With an additional PTFE lubricant.
Suitable for abrasive and viscous media
Ideal for sealing within extreme pumping applications - rotary or reciprocating.
K4303: A combination of selected glass fibre yarns and PTFE suitable for use in static sealing and valve applications
A general valve and static seal packing
Easy to cut, handle and install
K4310: A combination of selected glass fibre yarns and graphite, to produce a higher temperature packing for use in valves and static applications.
Good thermal resistance, can be used up to 450°C
A general valve and static seal packing
K4330: A universal packing, utilising Novoloid filament with PTFE lubricant. Especially suitable for rotary pumping applications where PTFE doesn’t posses sufficient strength.
Can seal a wide range of media
Suitable for pump applications
K4333: A strong, universal packing, using PTFE-lubricated polyimide filaments, with excellent strength. K4333 can be employed where shaft wear is a problem and will perform as a suitable alternative to aramid-fibre packings.
A TopLine grade able to perform reliably in a wide range of services and equipment
Suitable for low gland loads
WRc approved
