Low Profile Avionics Mounts

AM Series

Low profile, all-direction vibration and shock mounts for avionics equipment and other sensitive devices.

Click below for the full product catalogue. Pages 53 to 63.

Product-Catalog---Aerospace--Defense-Isolator-Catalog_PC6116.pdf

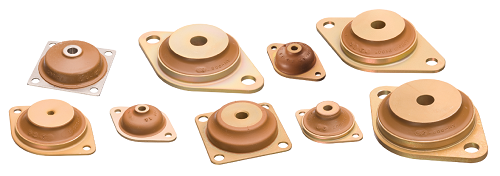

LORD® Low Profile Avionics Mounts (AM Series) set the standard for compact, high-load, high-capacity isolators. Made with specially compounded silicone elastomers, these mounts are designed to support and protect avionics equipment by controlling resonance and vibrations. They are used to isolate engine and aircraft accessories such as fuel controls, pressure sensors, and oil coolers. LORD low profile vibration isolators have a large operating temperature range, allowing them to be used in a variety of applications, including inertial guidance and navigation systems and radar components.

• Designed to support and protect avionics equipment in all types of aircraft
• Made with specially compounded silicone elastomers which exhibit excellent resonant control
• Operating temperature range of -65°F to +300°F (-54°C to +149°C) for BTR® Silicone and -40°F to +300°F (-40°C to +149°C) for BTR® II Silicone.
• Tested and approved to the environmental tests appearing in MIL-STD-810 or MIL-E-5400
