Klinger's Flange Insulation Kits
Flange insulation kits are essential for protecting flanged joints in piping systems. At Henry Gallacher, we have extensive experience in flange insulation solutions and stock a wide range of high-quality components to support a range of industries and applications.
Why Use Flange Insulation Kits?
Flange insulation kits protect flanged joints and keep your piping systems running smoothly. They help prevent common issues while making maintenance easier and safer. Key benefits include:
Reduce Electrical Arcing
Minimises the risk of sparking between flanges, particularly in systems that carry conductive fluids or are prone to static buildup.
Prevent Galvanic Corrosion
Helps stop dissimilar metals, such as aluminium and steel, from contacting and reacting when in the presence of moisture or electrolytes. This protects flanged joints from corrosion and weaken
Improve Safety
Helps maintain a stable, reliable system for both personnel and equipment.
Lower Maintenance Cost
Reduces the need for repairs and unplanned downtime.

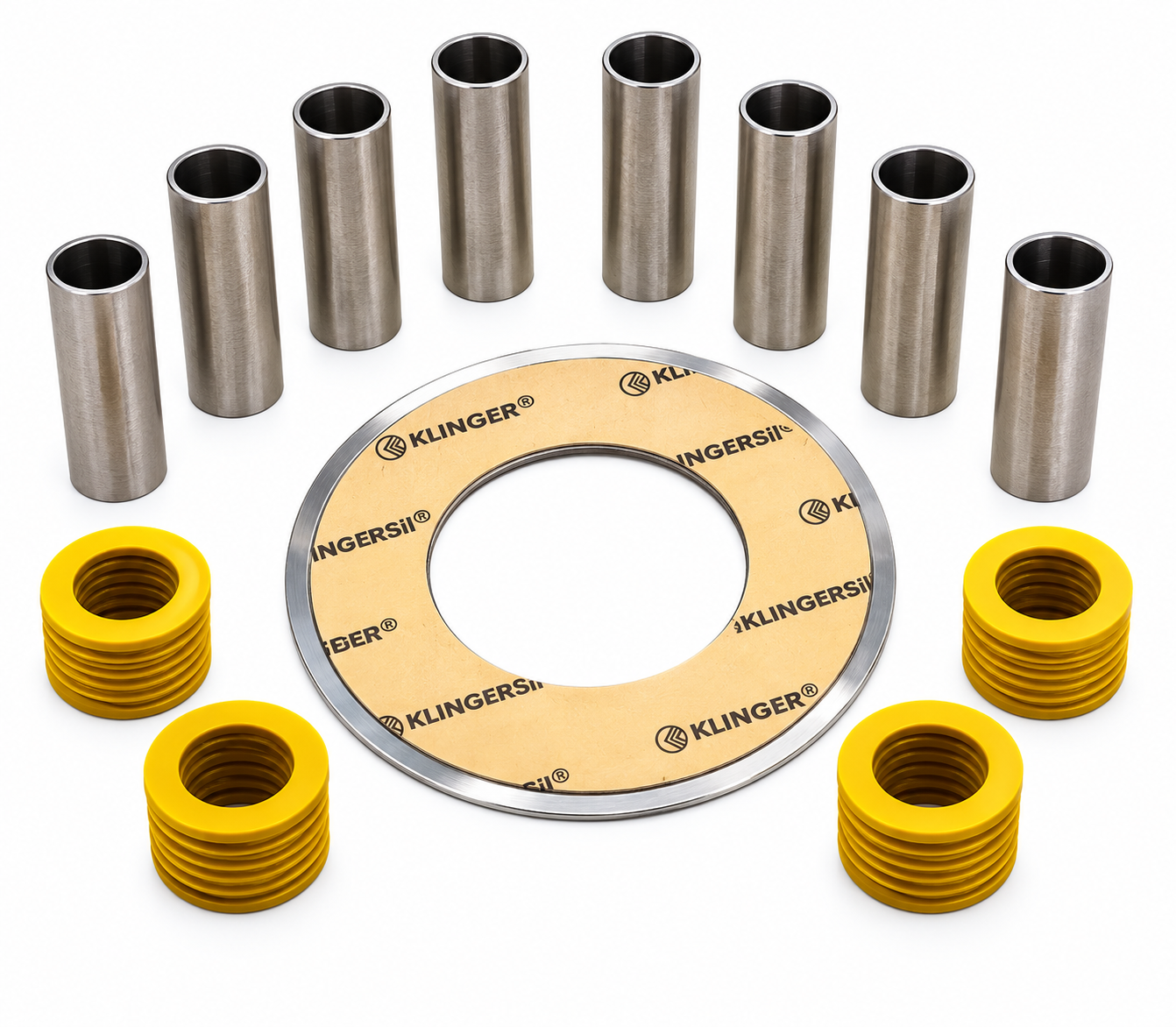

What's Included in a Set?
Insulating Gasket
Provides a dependable, leak-free seal between the flanges.
Insulating Bolt Sleeves
Prevent direct metal-to-metal contact by isolating the bolts from the flange assembly, helping reduce the risk of galvanic corrosion.
Insulating Washers
Maintains electrical isolation on both sides of the joint to ensure reliable insulation performance across the entire connection.
Steel Washers
Helps evenly distribute the load and maintain steady, secure joint compression.
Who Uses Flange Insulation Kits?
Flange insulation kits are widely used in many industrial sectors that use piping systems with flanged joints. They are most commonly used in applications that handle fluids and gases, including:
- Chemical processing
- Water and wastewater treatment
- Power generation
- Petrochemical
- Food processing
- General manufacturing
- What's Available?
What's Available?
We offer a standard range of Type D, Type E and Type F, featuring Neoprene Phenolic gasket, Mylar (polyester) sleeves, Phenolic washers and MSZP washers.Please contact us to enquire about all our sizing options and materials to suit your requirements.
Please contact us to enquire about all our sizing options and materials to suit your requirements.
Frequently asked questions
1. What are Klinger flange insulation kits used for?
Klinger flange insulation kits are used to electrically isolate connected pipe flanges, helping reduce galvanic corrosion and support cathodic protection systems in industrial piping applications.
2. What components are included in a flange insulation kit?
A typical flange insulation kit may include an insulating gasket, insulating sleeves and insulating washers. The exact components depend on the kit design, flange specification and application requirements.
3. How do I select the correct flange insulation kit?
Select a flange insulation kit based on flange size, pressure class, operating temperature, gasket material, process media and applicable flange standards to ensure compatibility with your piping system.
4. Where are flange insulation kits commonly used?
Flange insulation kits are commonly used in oil and gas, petrochemical, water treatment, power generation and other industrial pipeline systems where electrical isolation and corrosion management are required.
5. How can I request a quotation for Klinger flange insulation kits?
To request a quotation, provide your required flange size, pressure rating, material specifications, operating conditions and quantity. These details help your supplier identify a suitable flange insulation kit for your application.
