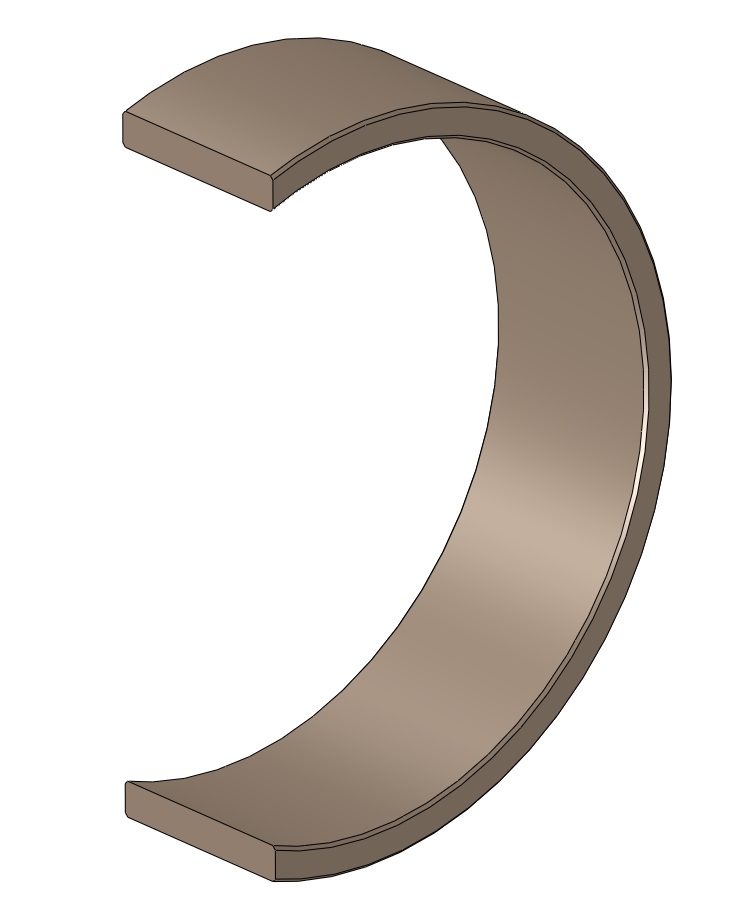

Guide Rings – Hydraulic & Pneumatic Wear Rings & Support Solutions
Ashton Seals supplies high-performance guide rings (wear rings) for use in hydraulic and pneumatic cylinders, designed to provide essential support, alignment, and protection for moving components. These critical elements help maintain system efficiency by preventing metal-to-metal contact between pistons, rods, and cylinder surfaces.
Also known as wear rings or guide strips, these components act as load-bearing elements within the cylinder, ensuring smooth operation and extending the life of both seals and equipment.
What Are Guide Rings?
Guide rings are non-metallic bearing elements installed within hydraulic and pneumatic systems to guide pistons and rods, absorb side loads, and maintain correct alignment during operation.
By distributing radial forces and preventing direct contact between metal surfaces, guide rings play a vital role in protecting components and improving overall system performance.
Key Benefits of Hydraulic & Pneumatic Guide Rings
- Prevent metal-to-metal contact and surface damage
- Absorb side loads and radial forces within cylinders
- Maintain proper alignment and concentricity of moving parts
- Reduce friction and improve operational efficiency
- Extend the life of seals, rods, and cylinder components
- Improve reliability in high-pressure and dynamic applications
Guide rings also act as a protective buffer, helping to reduce wear on softer sealing elements and minimise maintenance requirements.
FAQs
1. What are guide rings in hydraulic and pneumatic systems?
Guide rings (also known as wear rings) are components used in hydraulic and pneumatic cylinders to guide pistons and rods, preventing metal-to-metal contact. They help maintain alignment and protect critical components from wear.
2. What are the benefits of using hydraulic guide rings?
Hydraulic guide rings provide several key benefits:
- Prevent surface damage and metal contact
- Absorb side loads and improve alignment
- Extend the life of seals and cylinder components
Improve overall system efficiency and reliability
3. What materials are guide rings made from?
Guide rings are typically manufactured from high-performance materials such as:
- PTFE and filled PTFE for low friction
- Polyamide (nylon) for strength and durability
- Engineered composites for high load and wear resistance
Material selection depends on the application, load conditions, and operating environment.
