Bonded Seals
Please click here for the brochure - Bonded seal brochure.pdf
For the full catalogue please visit the Hutchinson website via this link: Sealing systems catalogue
Hutchinson Bonded seals are manufactured in Europe with compound approvals for Food, Gas, Aerospace and Military applications.
The bonded seals have been developed to achieve simultaneous resistance to pressure and vibration under severe temperature conditions, while ensuring the integrity of the assembly for which the seal is required. The bonded seal is particularly well-suited to sealing under screw and bolt heads, and in banjo and pipe connections.

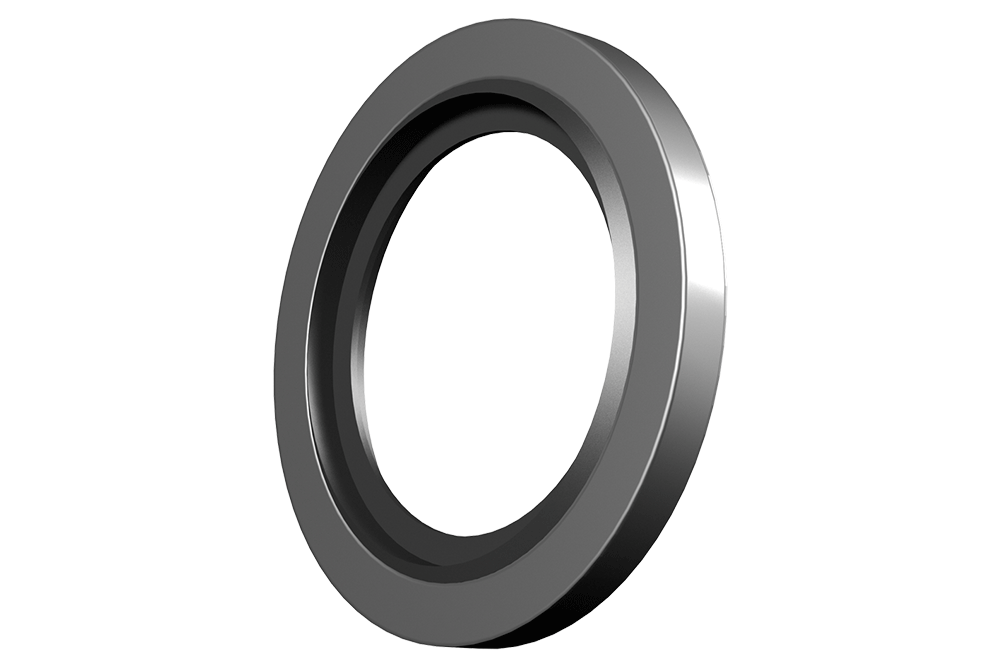

The bonded seal is a rectangular metal ring inside which a trapezoidal rubber ring is bonded and vulcanized. A thin membrane ensures the central positioning of the bonded seal. The type of metal and the rubber family vary according to application, fluid to be sealed, temperature and operating pressure. The metal insert is available in a variety of materials.
Available elastomer compounds: NBR – FKM – EPDM
Features
Dimensional standards (Bolt, BSP, imperial, metric)
Metals: mild steel with anticorrosion treatment, stainless steel, brass, aluminium alloy, aluminium
We offer a wide range of metal-rubber bushings : self-centered bonded seals, non-self-centering bonded seals, standard satinless steel bonded seals, pamargan flange seals, banjo sealing washers, and finally slimline sealing washers.
Benefits
Demountable and reusable
High-pressure resistance
Reduced assembly time
Approved elastomer blends
Hutchinson in brief
Hutchinson designs and manufactures intelligent solutions for a world on the move and participates in the mobility of the future on the sea, on land and in the air.
A leading manufacturer of precision seals, Hutchinson provides standard and custom solutions such as O-rings, quadrilobes, BS rings and form seals.
